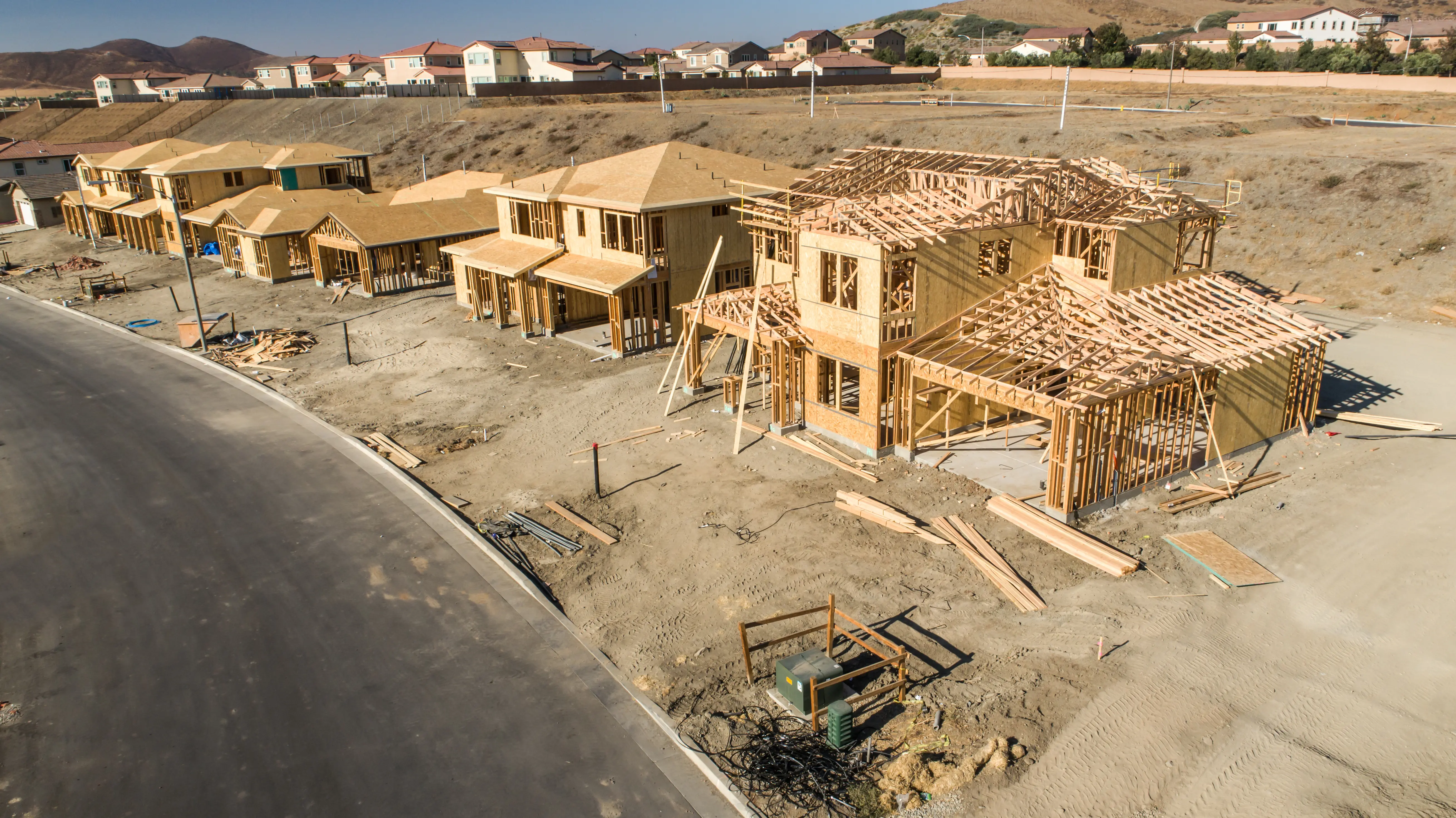

Infrastructure Layout And Construction Surveys in the Sea to Sky
Professional Infrastructure Layout And Construction Surveys in the the Sea to Sky, providing dimension control systems for complex civil engineering works, municipal utilities, and roadway development grids.
When developing critical infrastructure, highway corridors, or major municipal utilities in the Sea to Sky, translating complex engineering designs into physical reality is primary. Construction layouts form the geometric framework that dictates the success of your entire development, yet they represent one of the greatest single sources of liability in the land surveying and construction professions. In British Columbia, determining the location of any artificial feature—such as bridge abutments, drainage networks, or road alignments—relative to a legal boundary for the purpose of certifying it in writing is exclusively defined as the "practice of land surveying" under the Land Surveyors Act. Relying on unlicensed contractors for boundary-sensitive construction layout exposes your project to significant financial and legal risks.
As a dual-registered firm of British Columbia Land Surveyors (BCLS) and Professional Engineers, our professional geomatics team delivers the high statutory authority and spatial precision required to execute your infrastructure layout. We strictly adhere to WorkSafeBC policies, the Ministry of Transportation and Infrastructure's Traffic Control Manual, and private property entry protocols. For projects involving ground disturbance, we conduct a BC 1 Call request and securing explicit approval from the facility owner.
To achieve the high absolute and relative accuracy standards demanded by your engineering teams, our firm deploys a state-of-the-art arsenal of geomatics equipment. During preliminary site assessments, we utilize Unmanned Aerial Systems (UAS) equipped with Aerial Drone Photogrammetry and Aerial Drone LiDAR to rapidly generate survey-grade digital elevation models over expansive corridors. We establish a highly robust primary survey control network utilizing Static GNSS and RTK GNSS Receivers to integrate your property into the project's existing horizontal and vertical datums. In dense urban corridors or when laying out intricate structural elements, our survey crews use high-precision Robotic Total Stations to establish reference points and run closed-loop traverses. Where complex existing infrastructure is present, Terrestrial 3D Laser Scanning is utilized to capture a accurate, high-density point cloud of the as-built conditions.
Why Choose Tantalus Geomatics?
Our team combines local the Sea to Sky expertise with state-of-the-art surveying technology. We deliver highly accurate, BCLS-certified plans that streamline your municipal permit approvals and protect your property investments.
Our Infrastructure Layout And Construction Surveys Process in the Sea to Sky
How do we ensure accuracy and efficiency in our land surveying projects?
Research
The foundation of a boundary-sensitive layout is thorough documentary, utility and infrastructure research. The BCLS requires the complete set of engineering and construction drawings explicitly marked "Approved for Construction" before any fieldwork begins. They pre-compute and review the layout to ensure it is consistent with the current design, resolving any plan misclosures or ambiguities with your engineers. We also conduct systematic research through the Land Title and Survey Authority of British Columbia (LTSA) to define the parent parcel boundaries and confirm that ground disturbance specialists have cleared the site through BC 1 Call.
Field Work
Upon arriving at your site, the BCLS must first locate and confirm that sufficient legal survey monuments are in place. Conducting a boundary-sensitive layout near unposted property lines incurs massive liabilities; therefore, we strongly recommend formally posting the boundaries and filing a posting or reference plan prior to commencing layout. The density of the infrastructure and the complexity of the terrain directly impact the scope of field work and time required. Utilizing Robotic Total Stations, we establish a rigid grid utilizing 90-degree angles, which is vastly superior to radial layouts for onsite checking and adjustments. For highly sensitive sites, we mandate that all critical reference points are double-checked from two independent locations to guarantee high accuracies.
Plan Preparation
Following the precise field layout, our drafting technicians translate the field data into a non-statutory Certificate of Location of Layout for Construction. As your certifying professional, the BCLS takes full statutory responsibility for the layout, preparing a clear sketch plan that documents exactly what points were set in the field. The certificate explicitly details the horizontal and vertical coordinates of the points set, the location of local benchmarks, and a statement noting the specific "Approved for Construction" drawings from which the dimensions were derived.
What professional documents and markers do you receive upon project completion?
What professional documents and markers do you receive upon project completion?
Certified PDF Plans
A digitally signed and sealed BCLS Certificate of Location of Layout for Construction, explicitly detailing the points set, their offsets, elevations, and benchmark derivations.
Property Corner and Layout Monumentation
Physical installation of robust reference points, slope stakes, grade hubs, and control monuments to accurately guide your construction contractors.
Topographic 3D CAD Files
digital drafting files (DWG/DXF) mapping the exact layout points, property lines, and site topography for integration by your civil engineers.
Point Clouds and Orthoimages
Dense 3D Terrestrial LiDAR scan data and high-resolution aerial imagery providing a complete digital twin of the construction site.
