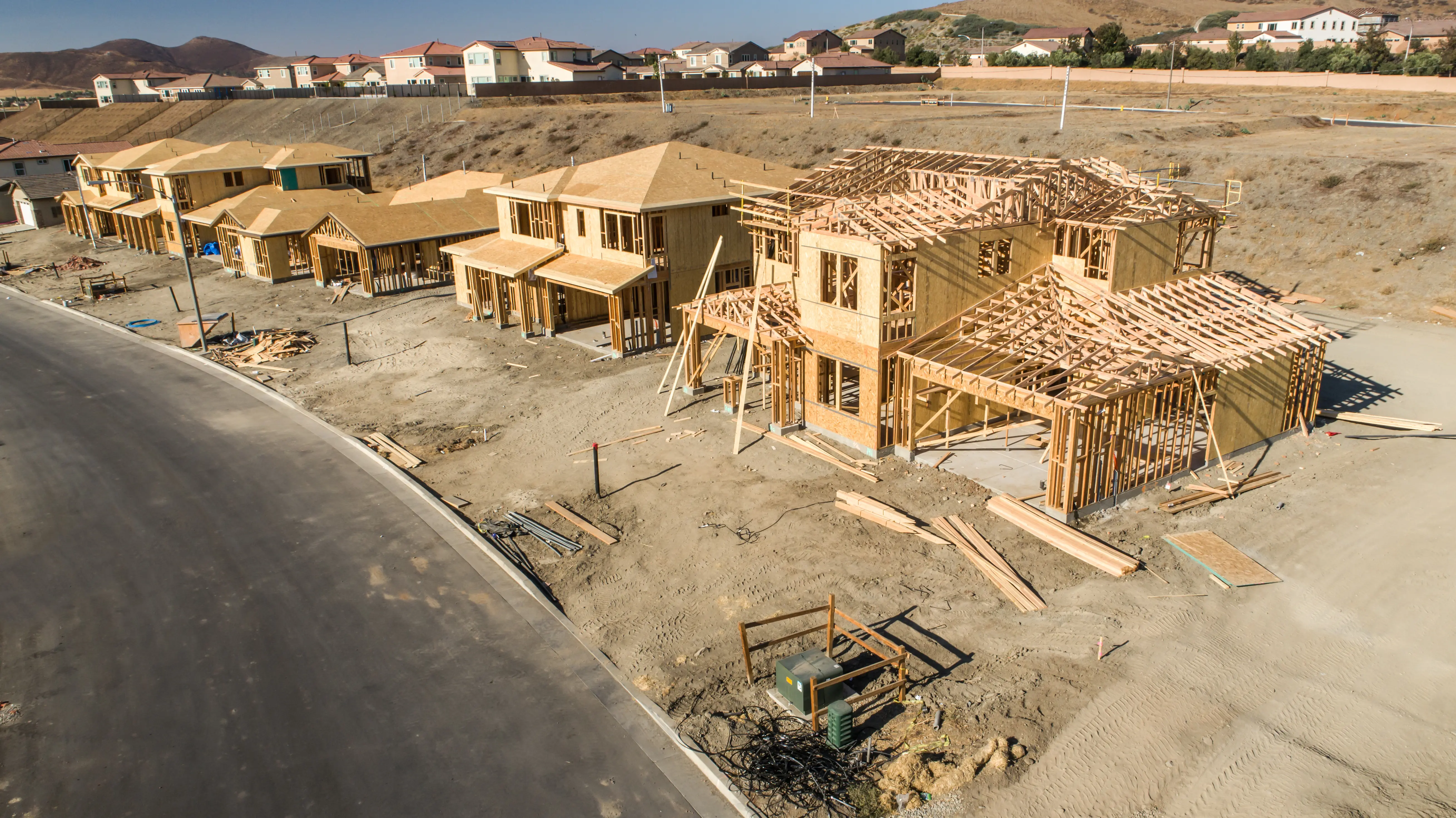

Gridline And Construction Layout Surveys in the Sea to Sky

Translating highly complex architectural and engineering designs into physical reality in the Sea to Sky requires high precision and absolute spatial certainty. Gridline layout surveys provide the fundamental geometric framework for your entire construction project, dictating the placement of foundations, columns, and structural shear walls. Because gridlines are inherently tied to your property's legal limits to ensure compliance with municipal setbacks, establishing this framework is an intensely regulated legal process. Under the Land Surveyors Act, determining the location of any artificial feature relative to a property boundary for the purpose of certifying it in writing is exclusively defined as the "practice of land surveying". Relying on unlicensed contractors to map your structural gridlines exposes your development to significant risks, including boundary encroachments and halted construction. Only a commissioned British Columbia Land Surveyor (BCLS) holds the statutory authority and professional liability insurance to legally position these critical features relative to property boundaries.

As a dual-registered firm of British Columbia Land Surveyors and Professional Engineers, our team delivers the authoritative foresight required to accurately execute your gridline layout. During the layout process, we mandate that all critical reference points the markers your contractor will use to re-establish building corners and structural lines are double-checked to guarantee accuracy. We also establish redundant horizontal and vertical control points, including the extension of existing lines and backsights on stable walls, ensuring your project has a reliable framework even when active construction destroys temporary survey markers.

To achieve the absolute and relative accuracy standards demanded by your design team, our firm deploys state-of-the-art geomatics equipment. During preliminary site assessments, we utilize Aerial Drone Photogrammetry and Aerial Drone LiDAR to generate accurate 3D topographic models of the pre-construction environment. To anchor the project's spatial framework, we deploy Static GNSS and RTK GNSS Receivers to integrate your property into the project's coordinate reference system. However, because deep excavations and dense urban environments frequently obstruct satellite signals, our survey crews leverage high-precision Robotic Total Stations to physically establish your gridlines and run closed-loop traverses. If your site features complex existing infrastructure or heritage facades, Terrestrial LiDAR (3D laser scanning) is utilized to capture a high-density point cloud of the as-built conditions, guaranteeing that our layout accurately accommodates the physical reality of your site in the Sea to Sky.
