Volume and Earthwork Surveys in Squamish

Expert Volume and Earthwork Surveys in services in Squamish, ensuring accurate legal layout and strict municipal zoning compliance.

Request a Quote Call (604) 213-9934

When managing major earthworks, deep excavations, or extensive material stockpiles in Squamish, the spatial precision of your volume calculations directly dictates the financial success of your project. In the high-stakes construction and infrastructure industry, a discrepancy of just a few centimeters across a large site can result in thousands of cubic metres of miscalculated material. Because these quantities form the basis for monthly contractor payments and invoicing pay items, relying on uncompromising accuracy and rigorous quality management is vital to protecting your bottom line. As a dual-registered firm of British Columbia Land Surveyors (BCLS) and Professional Engineers, our elite geomatics team delivers the authoritative 3D surface modeling and the precision required to certify your earthworks and eliminate costly billing disputes.

While volume surveys are a mathematical and geomatics exercise rather than a boundary establishment, our measurements are strictly governed by the highest professional accuracy standards, including the Association of British Columbia Land Surveyors (ABCLS) Survey and Plan Rules and the Ministry of Transportation and Infrastructure's General Survey Guide. Furthermore, our crews rigorously adhere to WorkSafeBC regulations and site-specific safety protocols when navigating dangerous terrain or active heavy machinery.

Flawless volume calculation is predicated on the creation of complex 3D Triangulated Irregular Network (TIN) surface models. To accurately capture this topographical data, our firm deploys an arsenal of geomatics equipment. We establish a highly robust primary survey control network utilizing Static GNSS measurements and RTK GNSS Receivers, integrating the site seamlessly into established geodetic datums. For active pits, dense corridors, or areas where satellite signals are obstructed, our survey crews deploy millimeter-accurate Robotic Total Stations to capture exact terrain breaks. To drastically enhance data collection on inaccessible terrain, steep rock faces, or busy construction zones, we leverage Terrestrial 3D Laser Scanning to capture high-density point clouds. Furthermore, we utilize Unmanned Aerial Systems (UAS) equipped with Aerial Drone LiDAR and Orthophotography to safely and efficiently generate survey-grade digital elevation models over expansive corridors.

Why Choose Tantalus Geomatics?

Our team combines local Squamish expertise with state-of-the-art surveying technology. We deliver highly accurate, BCLS-certified plans that streamline your municipal permit approvals and protect your property investments.

How do we ensure accuracy and efficiency in our land surveying projects?

We follow a structured, transparent process to deliver precise results and keep your project on schedule.

Step 01

Research

The foundation of a financially accurate volume calculation is exhaustive documentary research and data preparation. The BCLS requests the pre-design surfaces and alignment profiles. We carefully evaluate the design models, project coordinate reference system, and site control points to ensure our new measurements will seamlessly integrate with the established baseline. By thoroughly understanding the project scope and design deliverables before mobilizing, the BCLS ensures that the correct methodologies are utilized to meet the exact precision requirements of the contract.

Step 02

Field Work

Upon arriving at the site in Squamish, our survey crews meticulously capture the 3D topography utilizing our suite of Total Stations, GNSS, and LiDAR instruments. The density of the required points and the ruggedness of the terrain directly impact the scope of the field work and the time required to complete the survey. Our crews focus on capturing highly accurate "breaklines" to represent distinct terrain breaks (like the top of a bank or the toe of a slope), which prevents improper surface triangulation and ensures the TIN model exactly mimics the physical ground.

Step 03

Plan Preparation

Back in the office, our digital geomatics experts translate the dense 3D field data into precise surface models. We establish "base" surfaces, which represent the top of a native material prior to excavation, and "comparison" surfaces, which capture the excavated topography at specific billing intervals. By comparing the base surface against the comparison surface, our software computes the exact volume of material removed using a highly accurate surface-to-surface methodology. As your certifying professional, the BCLS generates formal Earthwork Volume Reports and graphical Isopach maps, providing an unbiased, authoritative record to support accurate contractor payments and engineering analysis.

What professional documents and markers do you receive upon project completion?

Every project concludes with a comprehensive package of certified documents and physical markers to meet all legal and municipal requirements.

Certified Earthwork Volume Reports

Authoritative spreadsheet reports detailing the exact cut and fill quantities, broken down by material types (e.g., stripping, rock, earth) to facilitate undisputed monthly contractor payments.

Isopach (Cut/Fill) Maps

Highly detailed graphical net surfaces that visualize the depth of excavations and heights of fills using color-coded elevation banding.

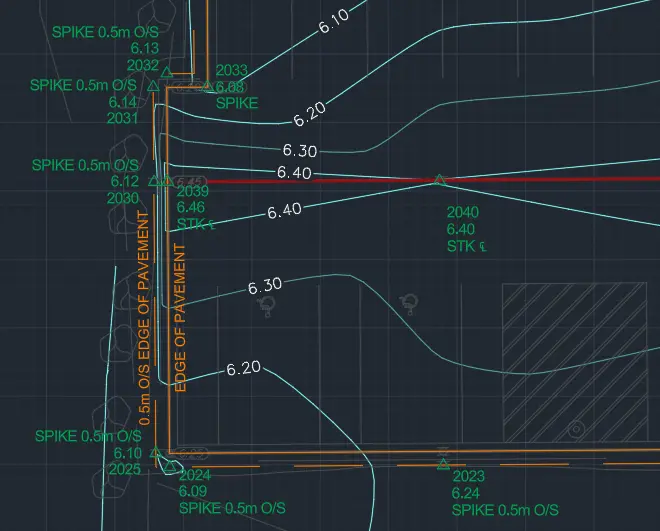

Topographic 3D CAD Files

High-precision digital drafting files (DWG/XML) containing the Triangulated Irregular Network (TIN) surface models, breaklines, and site topography for integration by your engineers.

Point Clouds and Orthoimages

Dense 3D Terrestrial LiDAR scan data and high-resolution aerial drone imagery providing a complete, verifiable digital twin of the excavation or stockpile site.
